GTX-H series-------Square open crossflow cooling tower--------Basic principle
GTX-H series square open crossflow cooling tower is a device that uses the contact (direct or indirect) between air and water to cool and dissipate heat by spraying packing, and takes away the heat through fans to cool water. Water is used as the circulating cooling medium.
GTX-H series square open crossflow cooling tower is mainly composed of six parts: spray packing system, spray water circulation system, collector system, control system, shell and frame, and fan.
Under the drive of the main circulation pump, soft water circulates in an open system within the cooling tower's spray packing. Heat is transferred to the surface of the packing, and the spray water falls vertically from the top of the tower. The water collector system sprinkles over the outer surface of the packing, forming a uniform water film. After heating, this water forms saturated hot steam. Fresh air enters the tower through the intake at the bottom, with the airflow and water flow being perpendicular to each other. During the circulation, the spray water is sprayed onto the surface of the packing for heat exchange, and the heat is discharged into the atmosphere by the fan. To reduce the temperature of the circulating water, two types of heat exchange occur: the heat transfer between the cold air and the cooling medium, and the heat absorption through the evaporation of the spray water. This process absorbs heat, thereby lowering the temperature of the working fluid, and the saturated hot steam is discharged upward by the fan.

GTX-H series-------Square open crossflow cooling tower design process
Ø Outer shell: using Pohang sheet metal/Pangang SS304L molded sheet imported from Korea
Ø Maintenance: Century Hualeng has a unique design that allows access to the maintenance channel inside the equipment.
Ø Inlet grille: Century Hualeng's unique high-efficiency inlet grille (PVC material) for separate cooling of spray water and cooler.
Ø Fan: It adopts a three-proof motor with IP55 protection class and F insulation class.

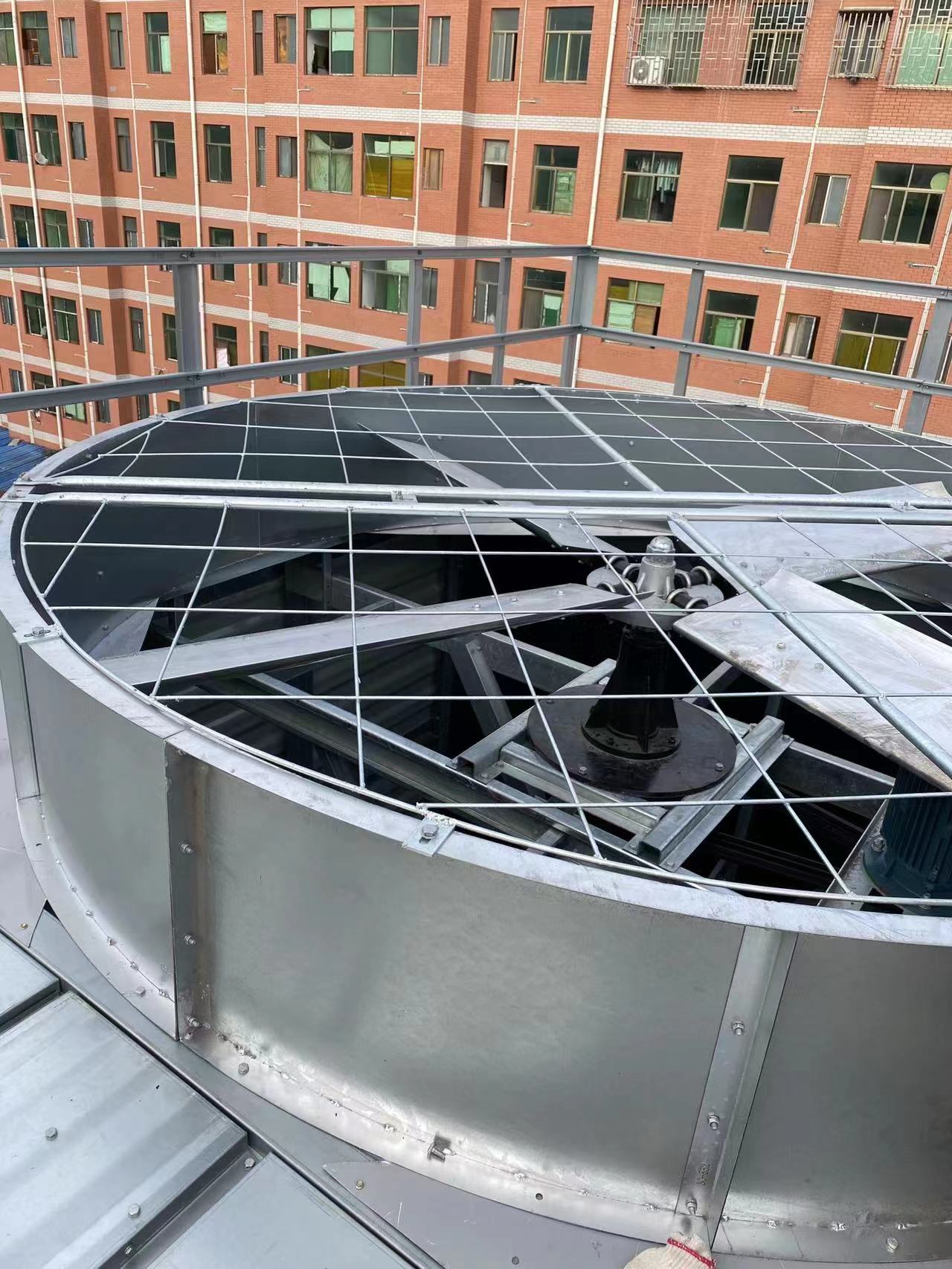

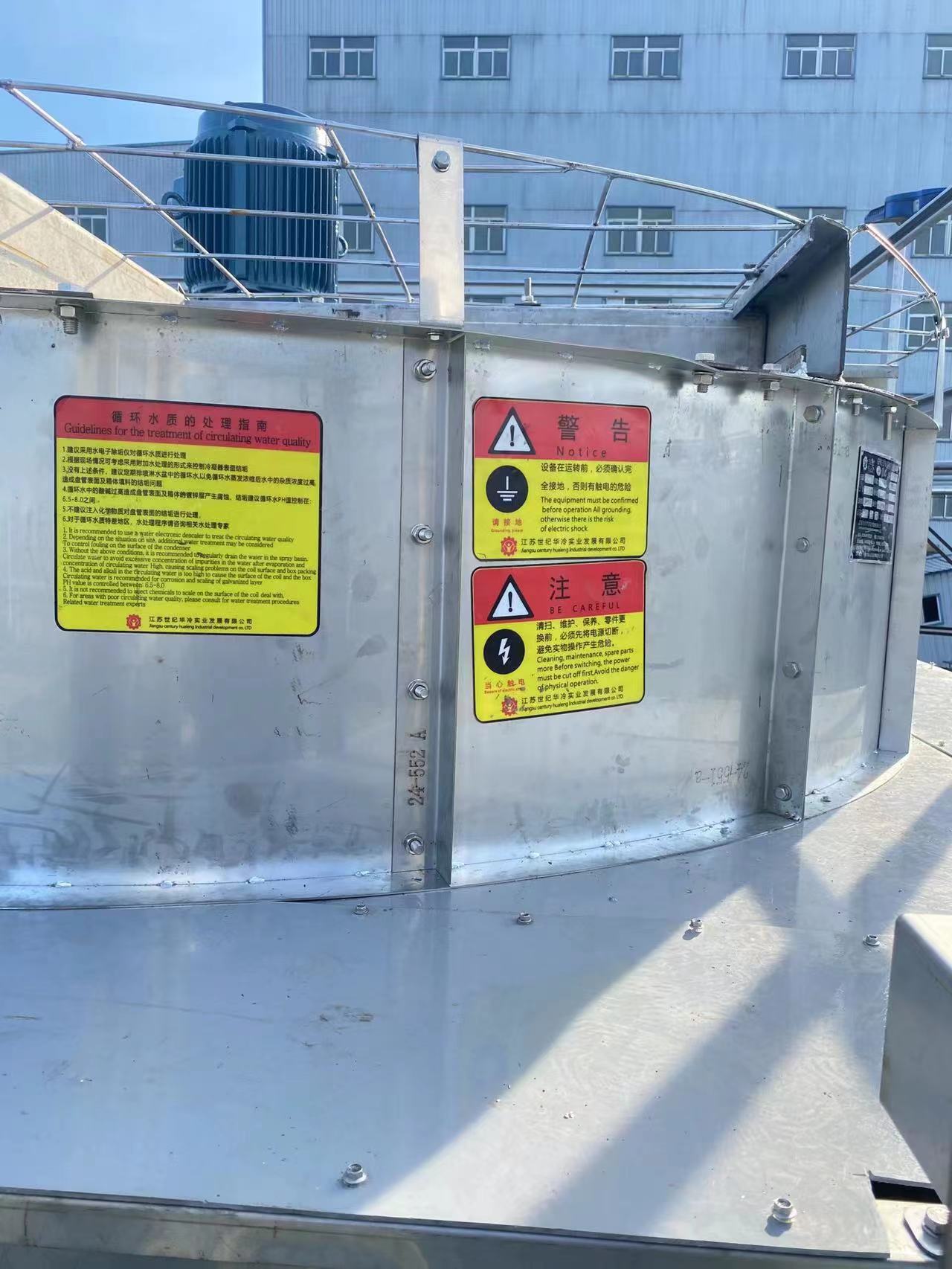

Ø Wind cylinder: Inductive FRP molded wind cylinder is used to reduce air backflow and leakage.

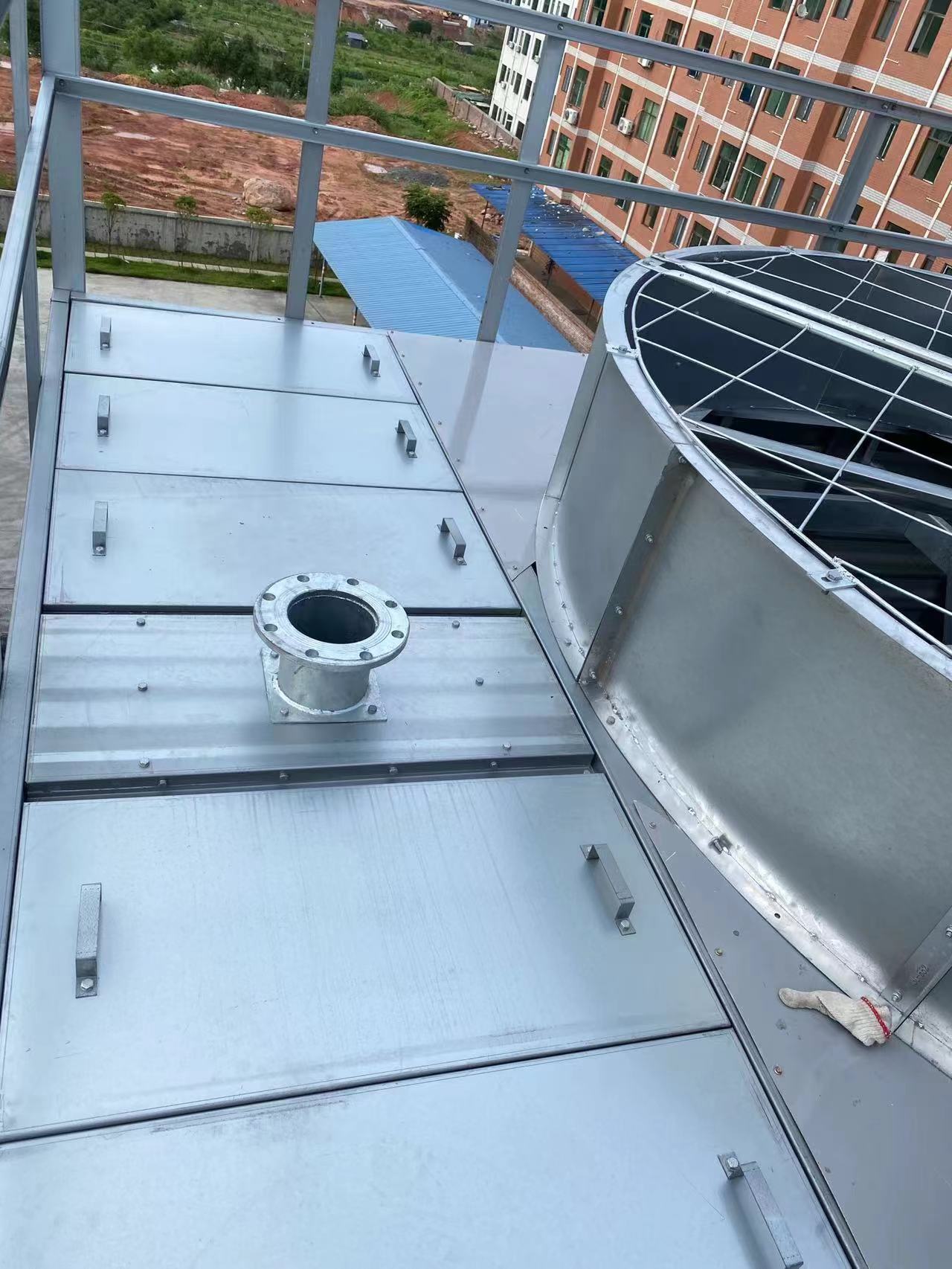

Ø Protective cover: corrugated carbon steel integral hot-dip galvanized protective cover to prevent debris from entering the fan.
Ø Sprinkler head: a new type of flower nozzle, with fine water droplets, uniform water spraying and large water distribution area.

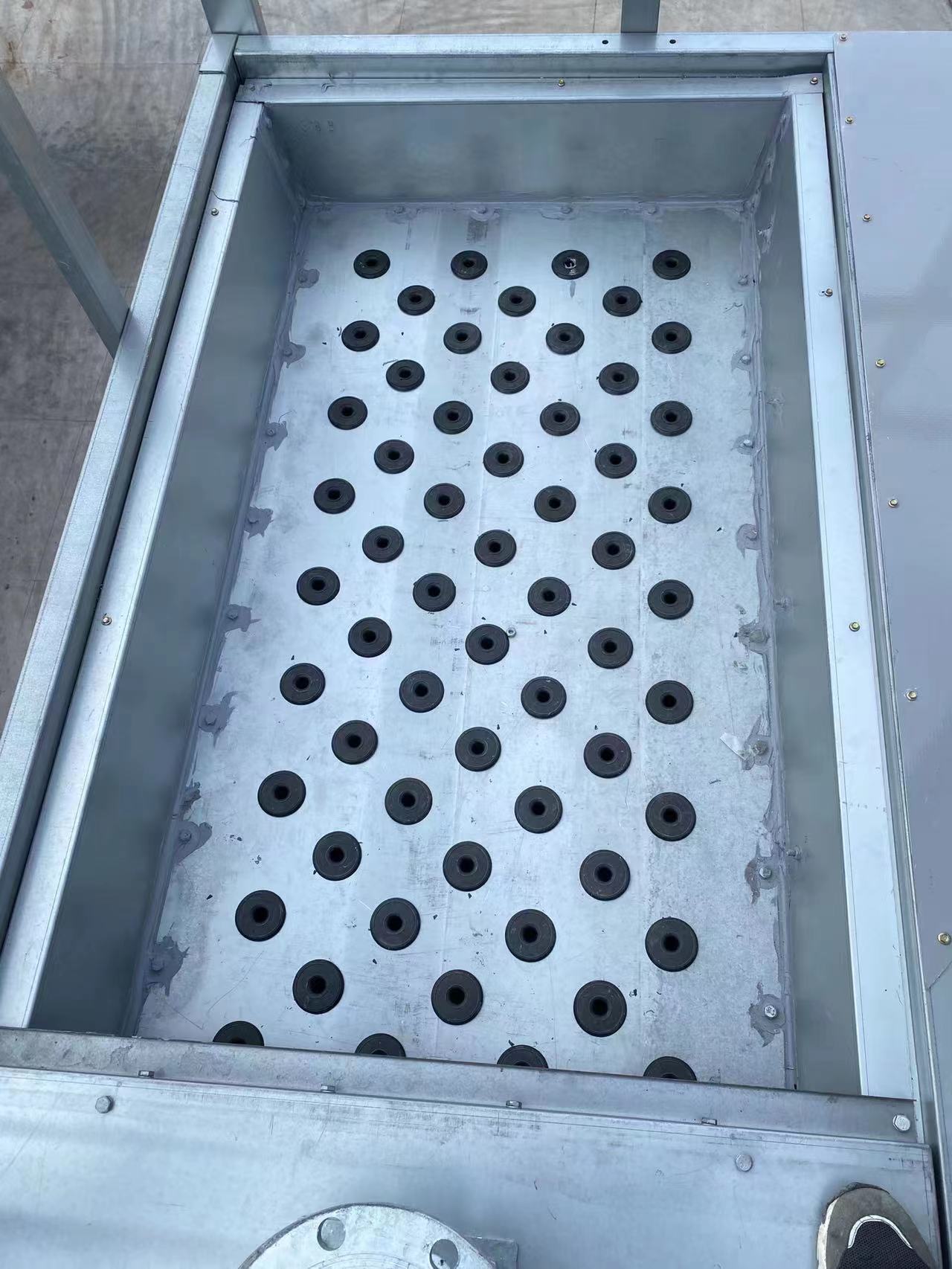

Ø Collector: FRP closed uniform water basin design
Ø Water collection tank: large water collection, wide area, good heat dissipation, fully meet the technical requirements of sprinkler water.
Ø Float ball valve: 304 stainless steel to ensure the water tank storage capacity.
Ø Pre-cooling filler: the American horsepower type heat dissipation filler is used. The evaporation heat transfer of water reduces the temperature of cooling water, and the water blocking plate in front effectively reduces the loss of floating water.
Ø Brand of electric control box: Chint/Schneider.
Ø Remote control: start and stop buttons for water pump and fan are provided.
Ø System control: the system operates a fault alarm system.
Ø Indicators: power on indicator, operation, shutdown and fault display lights.



FHL-H series------Square open crossflow cooling tower series is a mature and reliable cooling equipment formed by our company after years of design, manufacturing, continuous improvement and perfection. The product quality and technical performance are always in the leading position in the industry.

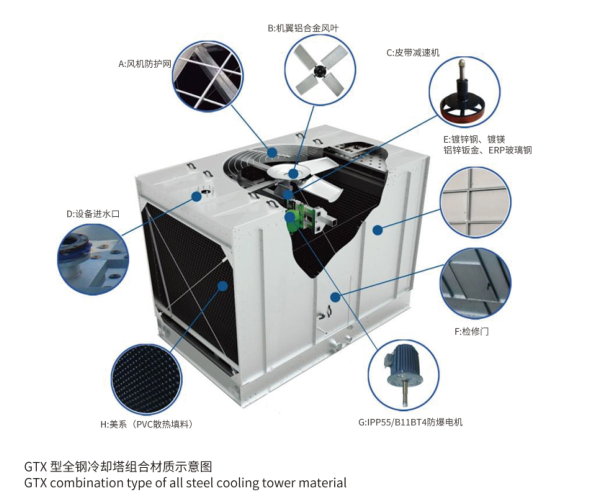

设备选材说明

	The base of the fan is made of reinforced sheet metal produced by Guogang/Baosteel and other manufacturers. The base of the fan can be adjusted slightly in circumference, and there are anti-twist iron bars. The contact surface is finely processed, and the motor base has horizontal and vertical fine adjustment holes to ensure that debugging and maintenance are very convenient. The sandblasting is rust removal, and the epoxy coal tar is anti-corrosion.
	The PVC material with high thermal performance and not easy to block is used, and the packing of Century Hualeng meets the requirements of DL/T742-2001 "Technical conditions for plastic parts of cooling tower".
	Using wing type, aluminum alloy high quality cooling tower dedicated axial fan,
	Fully galvanized steel duct
	The internal structure adopts simple and practical century, with large space. The water storage space is large, more convenient for maintenance and maintenance, etc.,
	The spray system uses ABS/PP material for low-pressure nozzles, which are large in diameter and do not clog. The water is sprayed evenly without any hollowing, and the water is sprayed in a mist-like form, ensuring uniform air distribution. It has a wide range of hydraulic load adaptability and features self-drainage capabilities. The nozzles are connected to the distribution pipes using threaded connections, ensuring the system operates safely over the long term.

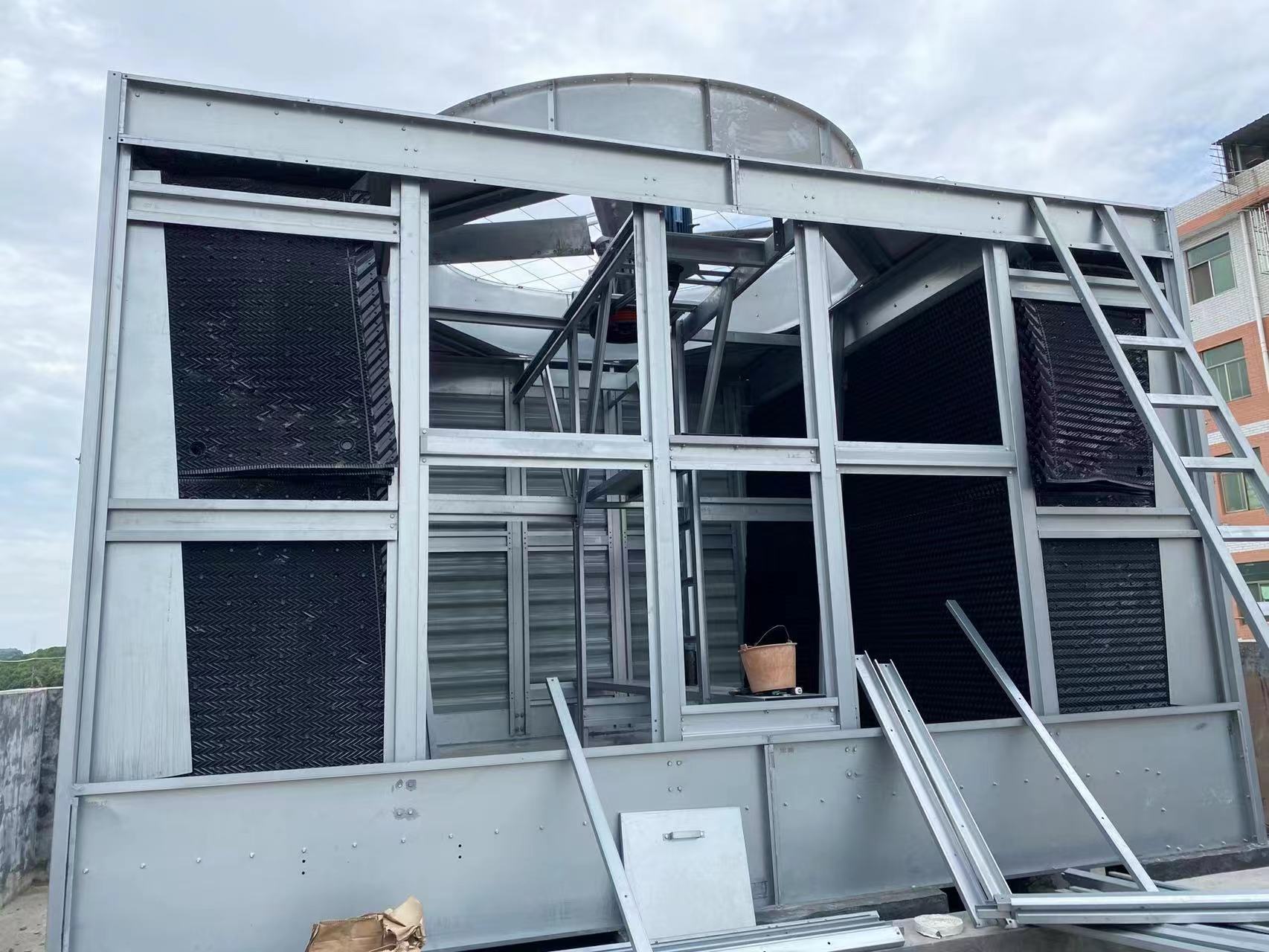

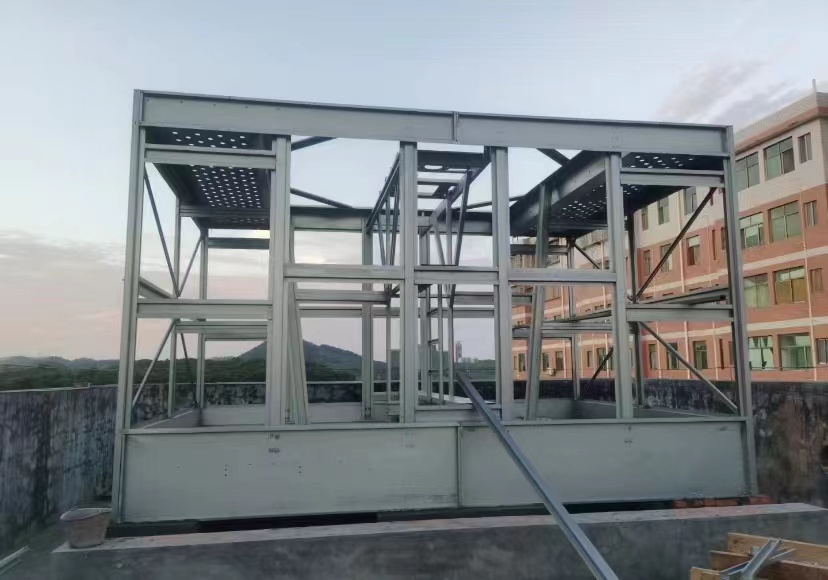

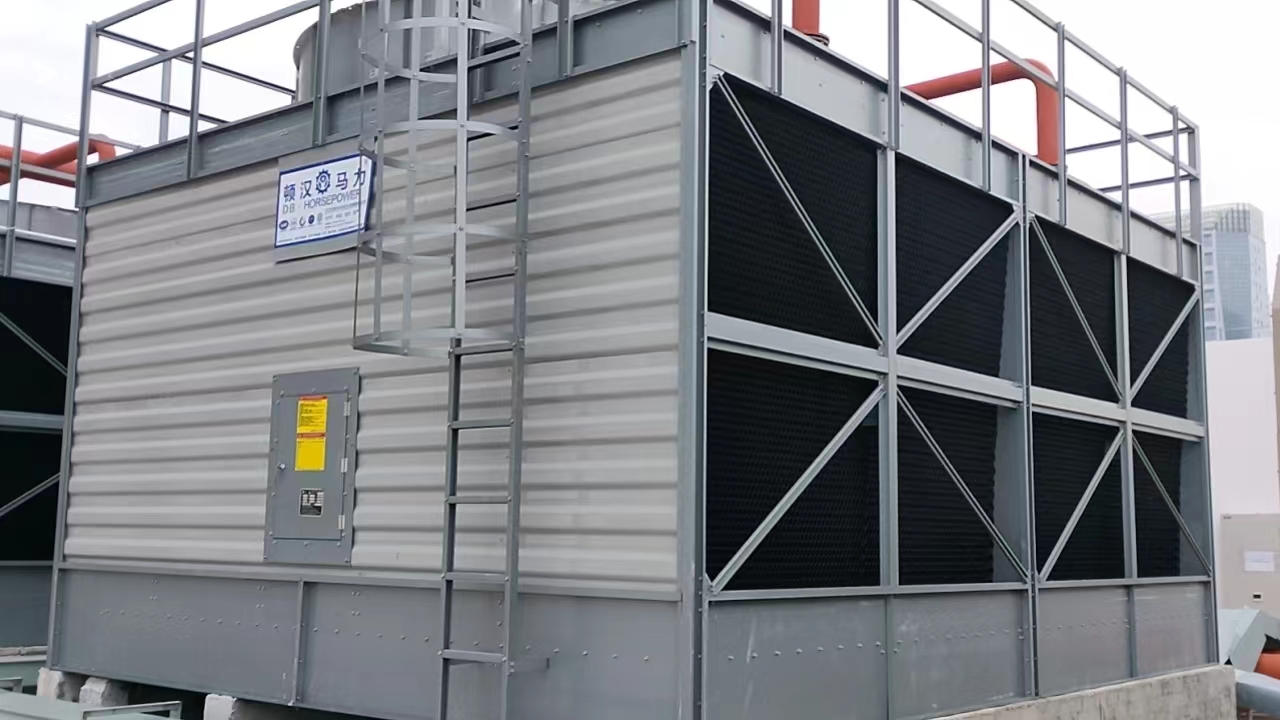

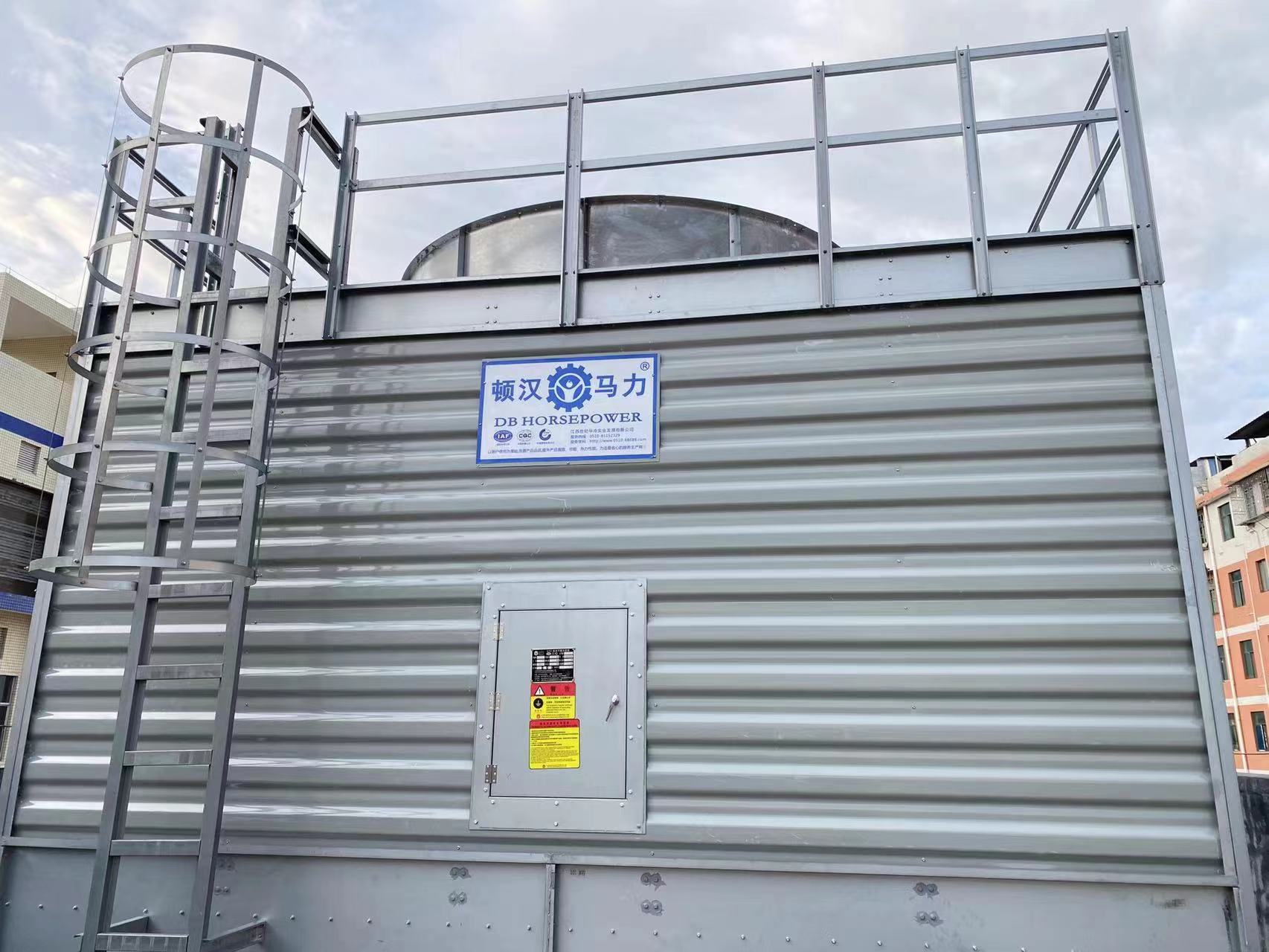

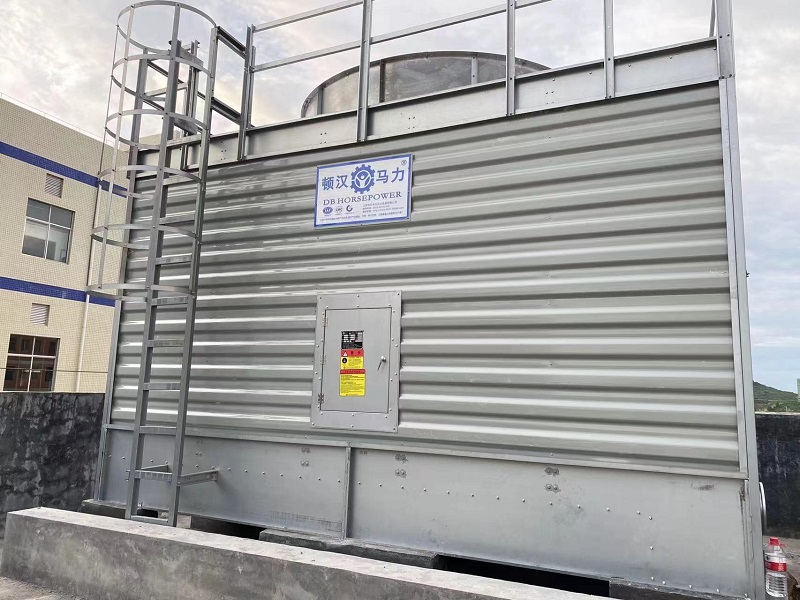

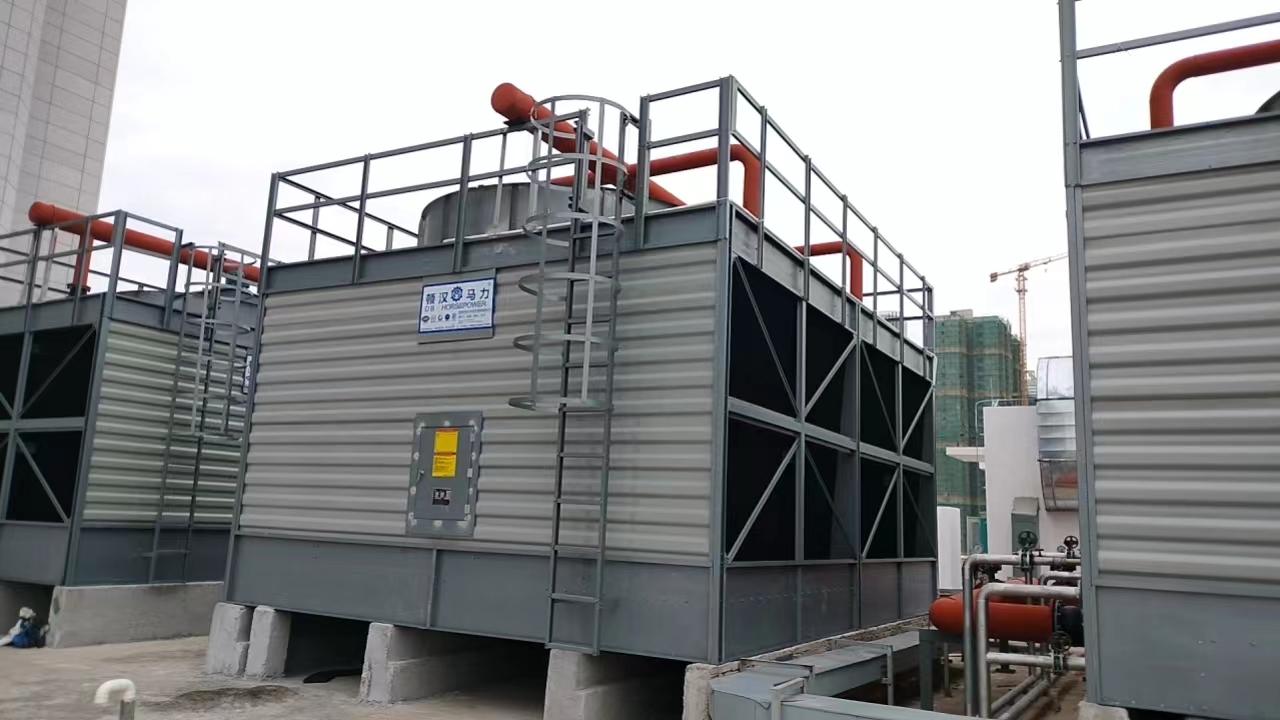

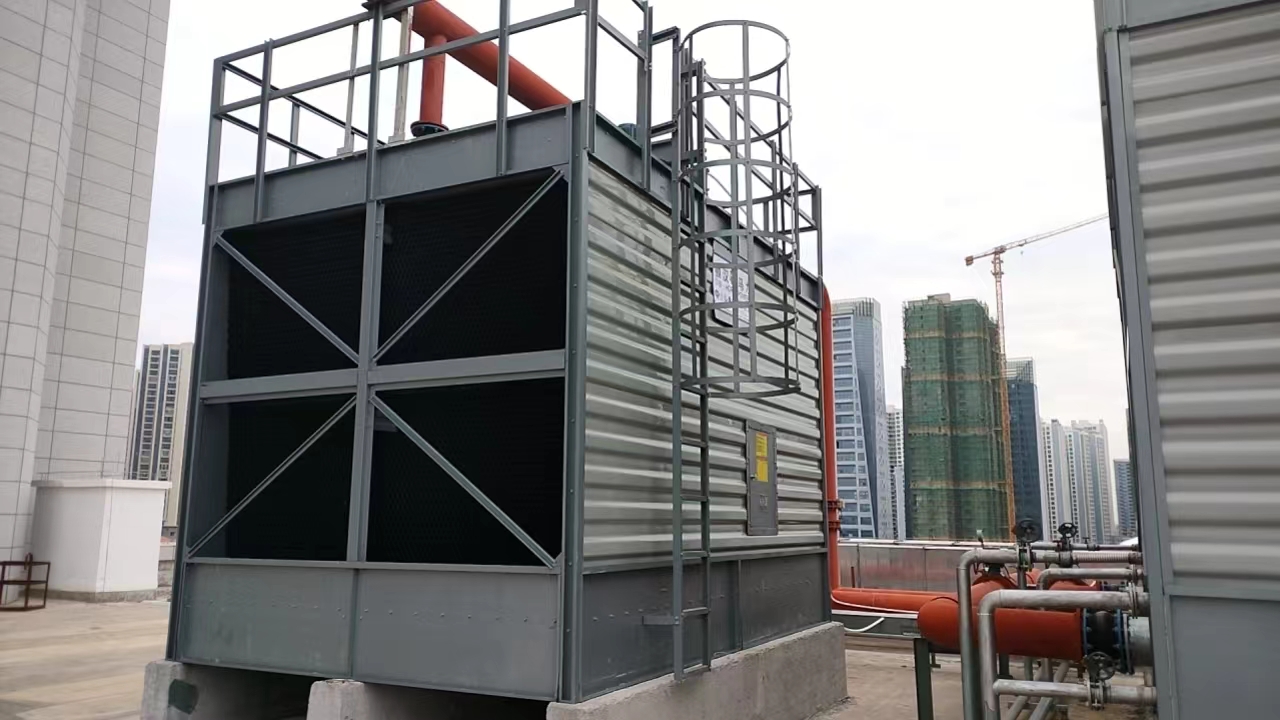

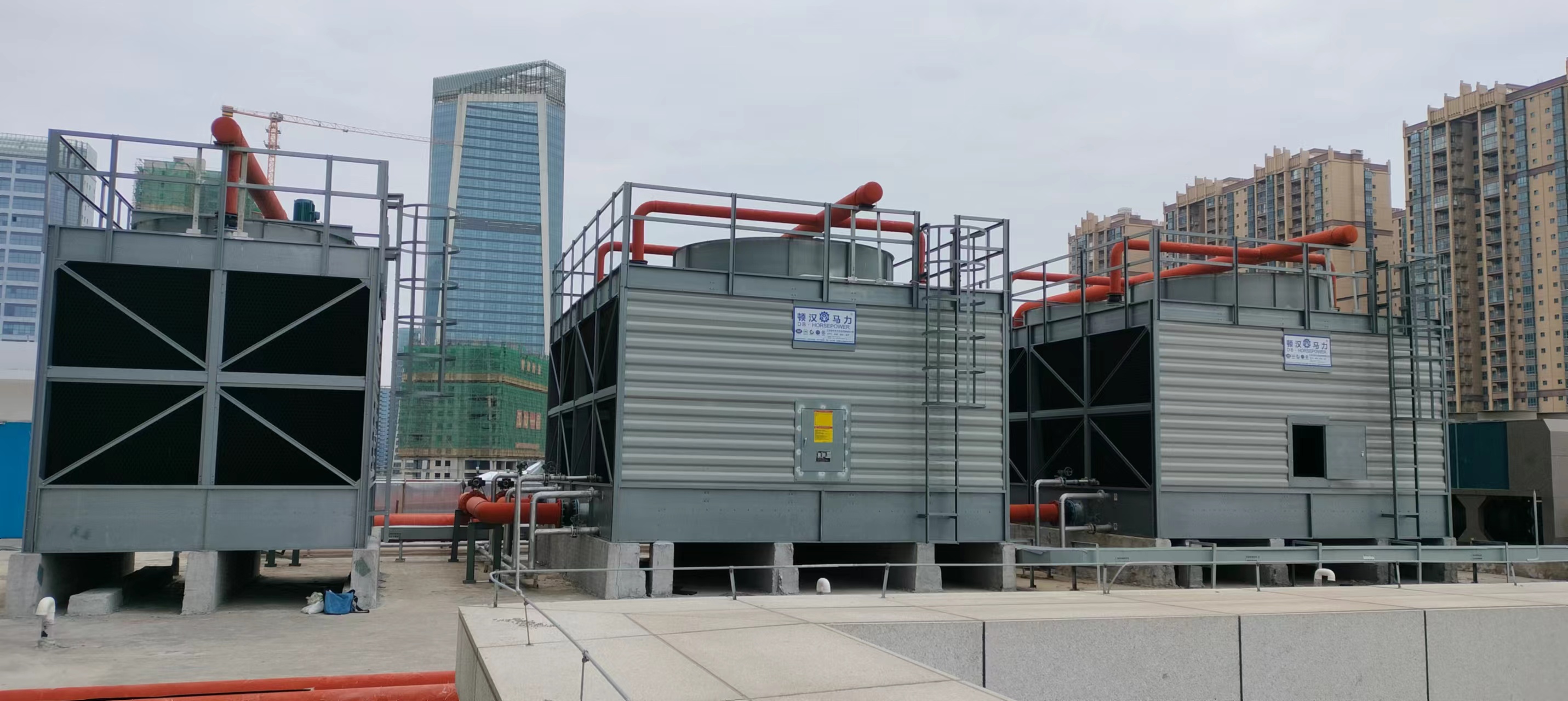

Product shooting: customer use case

A: Used in the field of copper and steel smelting


B: Used in medium frequency, quenching and vacuum furnace fields


C: Used in central air conditioning, auxiliary cooling, air compressor system, power system and other fields


D: Used in chemical industry, special equipment, water source cooling and other fields
